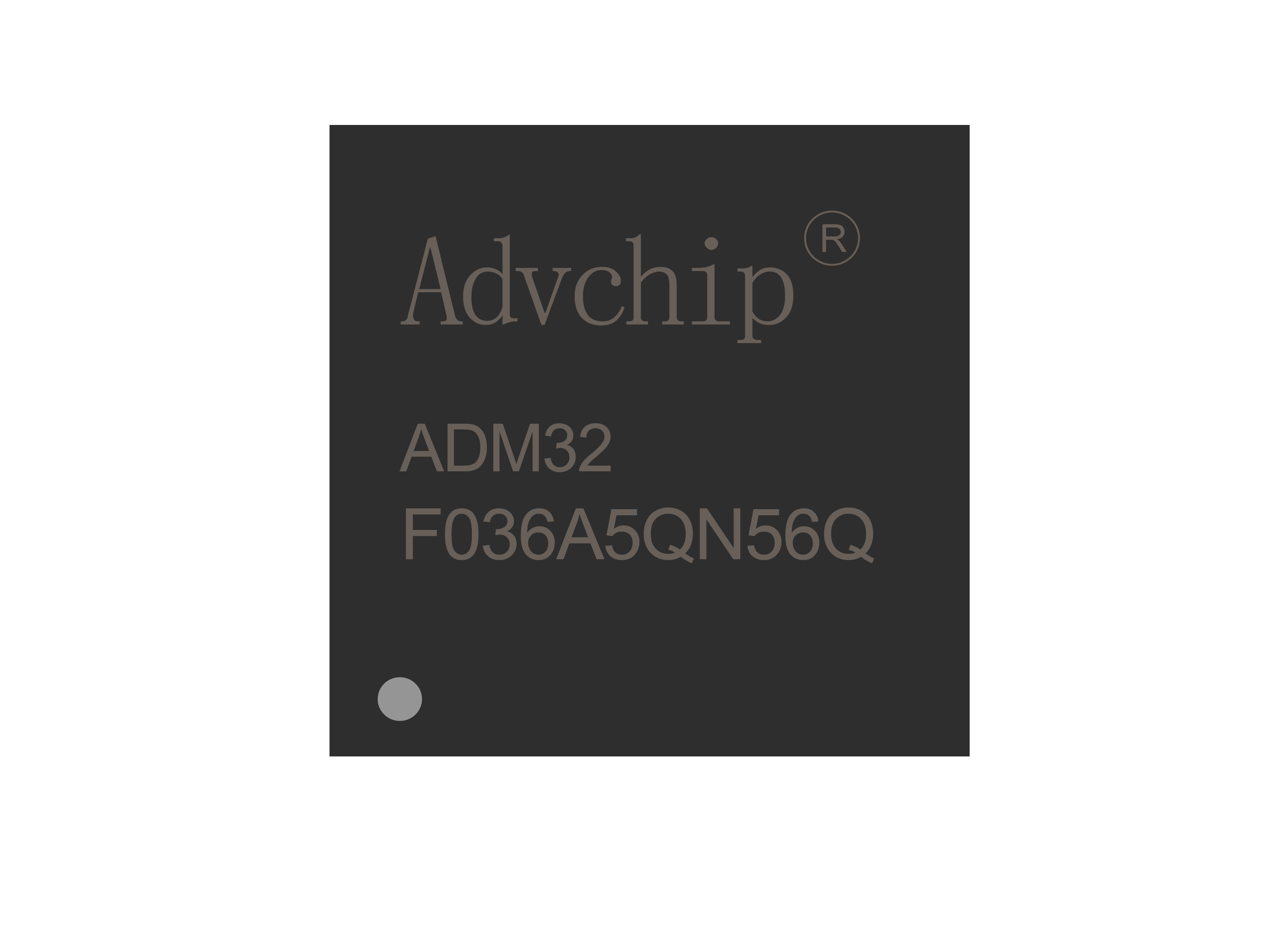

ADM32F036A5
ADM32F036A5Q is a high-performance SoC designed for automotive applications, integrating LDO, charge pump, 8NMOS pre drive, and four-way independent half bridge. It has multiple protection mechanisms such as GDF, VCP, OTP, and OCP, and is equipped with a 100M main frequency 32-bit DSP processing core+CLA, enhanced control peripherals, CAN, CANFD, LIN (with transceiver), SPI, HRCAP modules, 12 bit ADC, OP, PGA, voltage comparator, and temperature sensor; Can form a highly integrated motor control driver, directly driving the motor, supporting low-power brushed, stepper, and three-phase brushless (inductive, non inductive, square wave, sine wave).
Datasheet →Automotive Standard
l Single source power supply
-5.5~40V
- Integrated LDO (core 1.2V, IO 5V, analog 3.0V)
- Integrated POR and BOR circuits
- Integrated charge pump circuit
l High performance 32-bit fixed-point DSP core
- Maximum clock speed of 100MHz
-16x16, 32x32MAC operation
-16x16 dual MAC operation
- Harvard bus structure
- Fast interrupt response and processing
l Programmable Control Law Acceleration Unit (CLA)
-32-bit Floating Point Acceleration Unit
- Acceleration Code Parallel Execution with CPU Code
l on-chip memory resources
-18Kx16 bit SARAM
-64Kx16 bit Flash
-8Kx16 bit BootROM
l 128 Bit secure key ADC
-12 bit SAR, conversion rate 4MSPS
-14 channels, with temperature sensor channel
- input range 0-3V, internal reference
l operational amplifier
-1 OP, can be used for bus current detection amplification
-3 PGA, can be used for phase current detection amplification
l Integrated four phase high and low side half bridge driver circuit
- Eight NMOS Pre Driver
- High side VCP power supply, no need for additional bootstrap circuit
- Low side VGL power supply, stable driving voltage
- With GDF, VDS, OTP fault protection
l Integrated power half bridge
- Four independent half bridges
- Half bridge internal resistance 440 milliohms
- Half bridge current 1A
- Phase current overcurrent protection OCP
l Voltage comparator
-3 voltage comparators
- External or built-in 8-bit DAC voltage reference
- Output associated TZ, supporting periodic waveform protection
l Enhanced control peripherals
-3 32-bit timing/counters
-5 16 bit timing/counters
-10 PWM outputs (internal 8 control 8 NMOS)
-1 capture unit (HRCAP)
l Interrupts
- Up to 42 interrupts set by PIE
l Serial communication peripherals
-1-channel SPI
-1-channel CAN/CAN FD
-1 LIN control+transceiver, supporting sleep and remote wake-up
l IO
-13 universal IOs
l Clock
-10M on-chip oscillator
- Quartz crystal oscillator/external input mode
- PLL multiplication coefficient 1x~12x
l Supports WDT and JTAG online simulation
- Analysis and breakpoint function
- Hardware based real-time debugging
l QFN56 7 * 7 package, QFN56 5 * 5 package (ADM32F036A5AQN56Q)
l Temperature range -40 ℃~+125 ℃
l AEC-Q100 Authentication
