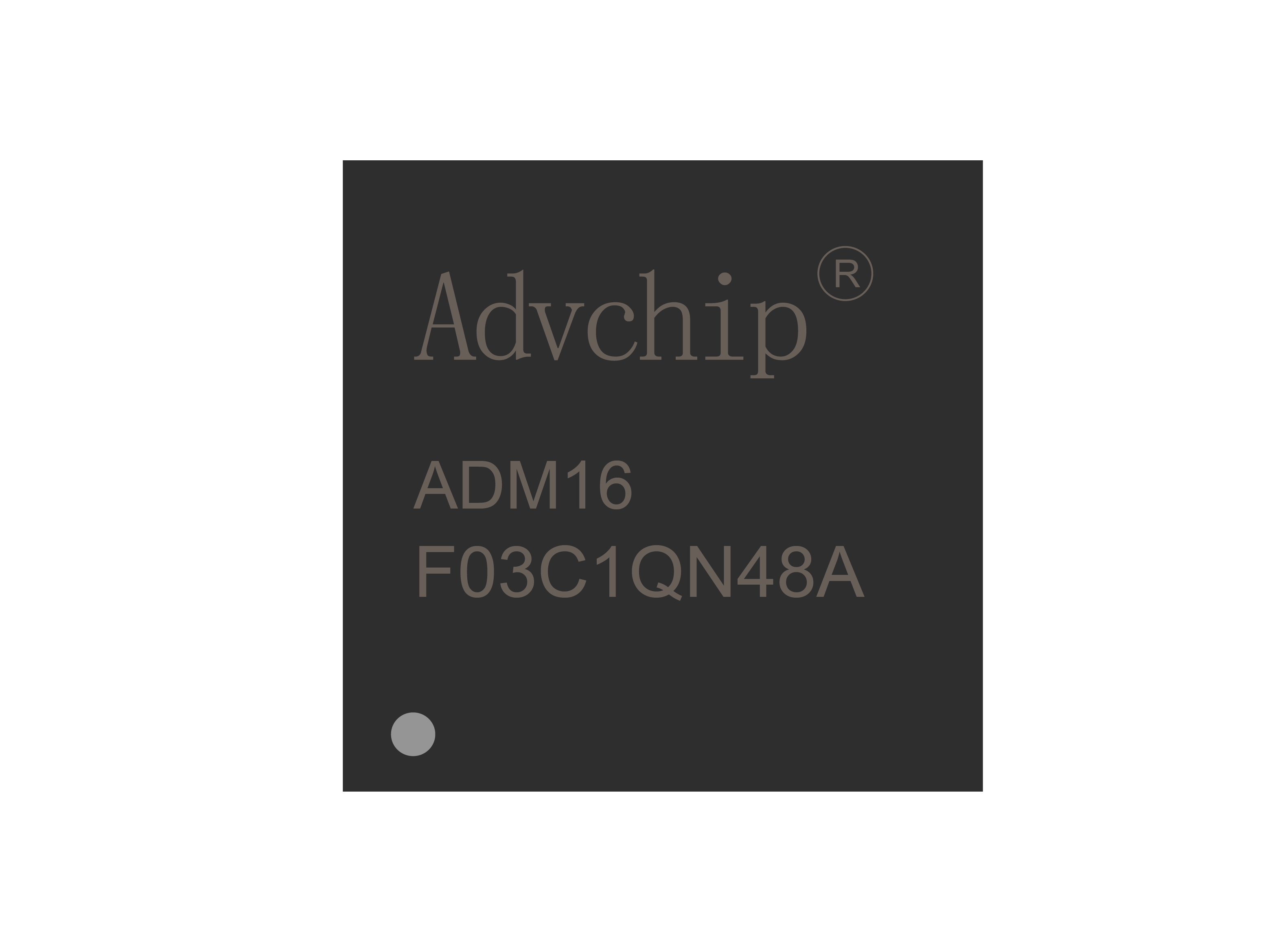

ADM16F03C1
ADM16F03C1QN481 is an intelligent motor control driver chip that integrates ADP16F03 controller, complete signal acquisition chain, intelligent power management unit, and 6NMOS pre driver. It is based on a 16 bit DSP with a main frequency of 150M and is equipped with 4Kx16 bit SARAM, (256+256+32) x 16 DARAM, and 32Kx16 bit Flash; Integrate division, square root, arctangent, Park transform, and 32-bit multiplication, addition, and shift operation acceleration units; An event manager that integrates 7-channel PWM and PWM synchronous ADC triggering units; Integrate SPI and SCI communication peripherals; Integrated filtering unit; Supports interrupts with 29 PIE settings and supports 11 universal IO.
Datasheet →consumption
l Single source power supply
-5.0V~70V
- Integrated LDO (pre drive 12V, core 1.2V, digital IO port 5V, analog 3V), low-power minimum current below 10uA
l High performance 16 bit fixed-point DSP core
- Maximum clock speed of 150MHz
- Harvard bus structure
- Fast interrupt response and processing
l on-chip memory resources
-4K x 16 bit SARAM
- (256+256+32) x 16 bit DARAM
-32K x 16 bit Flash
l operation acceleration unit
- division, square root
- arctangent
- Parker transform
-32-bit multiplication, addition, and shift
l 11 1 universal I/O pin+6 digital inputs
l Event Manager EM1
-4 16 bit timer/counters
-7 PWM outputs (PWM1-6 form 3 complementary groups, PWM8 is independent)
- Configurable interrupt generation and ADC sampling trigger timing within PWM cycle
l Integrated three-phase high and low side half bridge drive circuit
- Six channel NMOS Pre Driver
- Gate drive circuit high side maximum floating absolute voltage reaches 70V
- Drive capability IO+/IO -:+1.5A/1.8A
l ADC
-12 bits, conversion rate 1MSPS
-11 channels (including internal temperature sensor channel)
- Channel sorter, can set ADC sampling channel sequence
l operational amplifier
-1 OP, can be used for bus current detection amplification
-2 PGAs, can be used for phase current detection amplification
l Voltage comparator
-3 voltage comparators with shared reference terminals, suitable for BEMF comparison detection
-2 voltage comparators with reference voltage (generated by DAC), suitable for protecting
l Interrupts
-29 peripheral interrupts set by PIE
l Digital Delay Filtering
-3 sets of independently configured delay filtering units, corresponding to external interrupts, power protection, and CAP1/2/3
l Serial communication peripherals
- SPI, SCI
l Clock
-10M on-chip oscillator
- PLL multiplication factor 1x~15x
l supports WDT
l supports 4-wire fast program burning
l Supports JTAG online simulation
- Analysis and breakpoint function
- Hardware based real-time debugging
l MSL Humidity sensitivity level: 3
l Encapsulation Form
- QFN48 Encapsulation
