High speed blowerIntroduction
Using a non sensory FOC solution, the overall BOM cost is low, and the speed can reach 110000 revolutions per minute. Complete protection functions; Quick start and stop; Stable motor control; Accurate closed-loop stability control; Stable current waveform:
Features the Solution

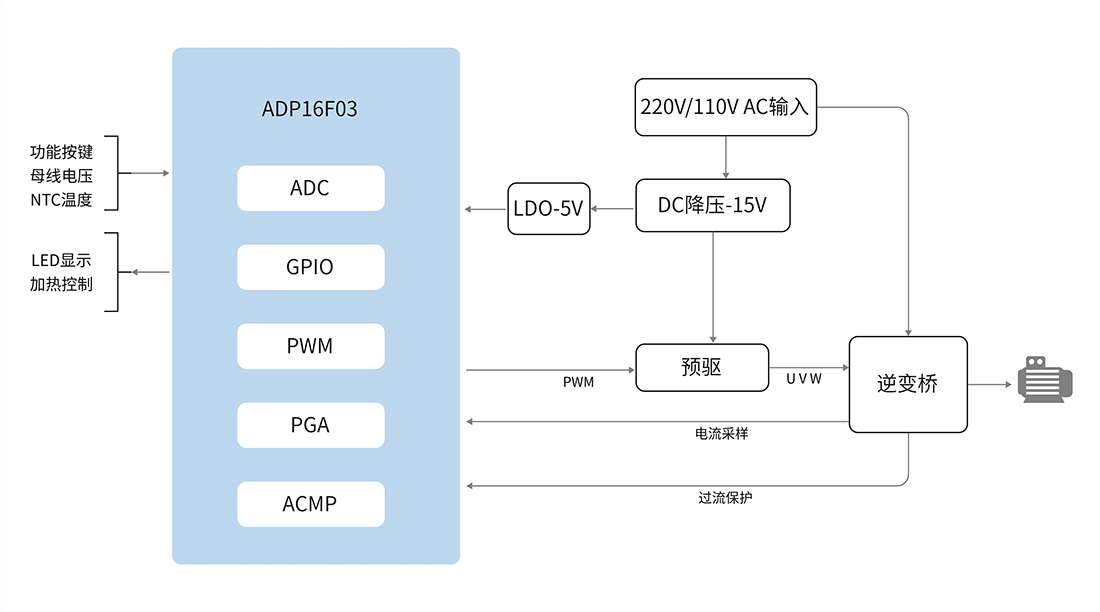

● Hardware composition: ADP16F03+MOSFET
● Operating voltage: 176VAC~265VAC
● Power: 1500W
● Speed range: 110000 RPM
● 10} Motor: BLDC motor
● Control algorithm: Dual resistor non inductive FOC control
● Protection functions: overvoltage, undervoltage, overcurrent, phase loss, locked rotor, etc.
● Operating voltage: 176VAC~265VAC
● Power: 1500W
● Speed range: 110000 RPM
● 10} Motor: BLDC motor
● Control algorithm: Dual resistor non inductive FOC control
● Protection functions: overvoltage, undervoltage, overcurrent, phase loss, locked rotor, etc.
