Air conditioner compressorIntroduction
This solution has strong load start capability, which improves the success rate of load start; Equipped with weak magnetic acceleration function, smooth entry and exit of weak magnetic fields; Using self-developed algorithm solutions to make motor control smoother

Features the Solution

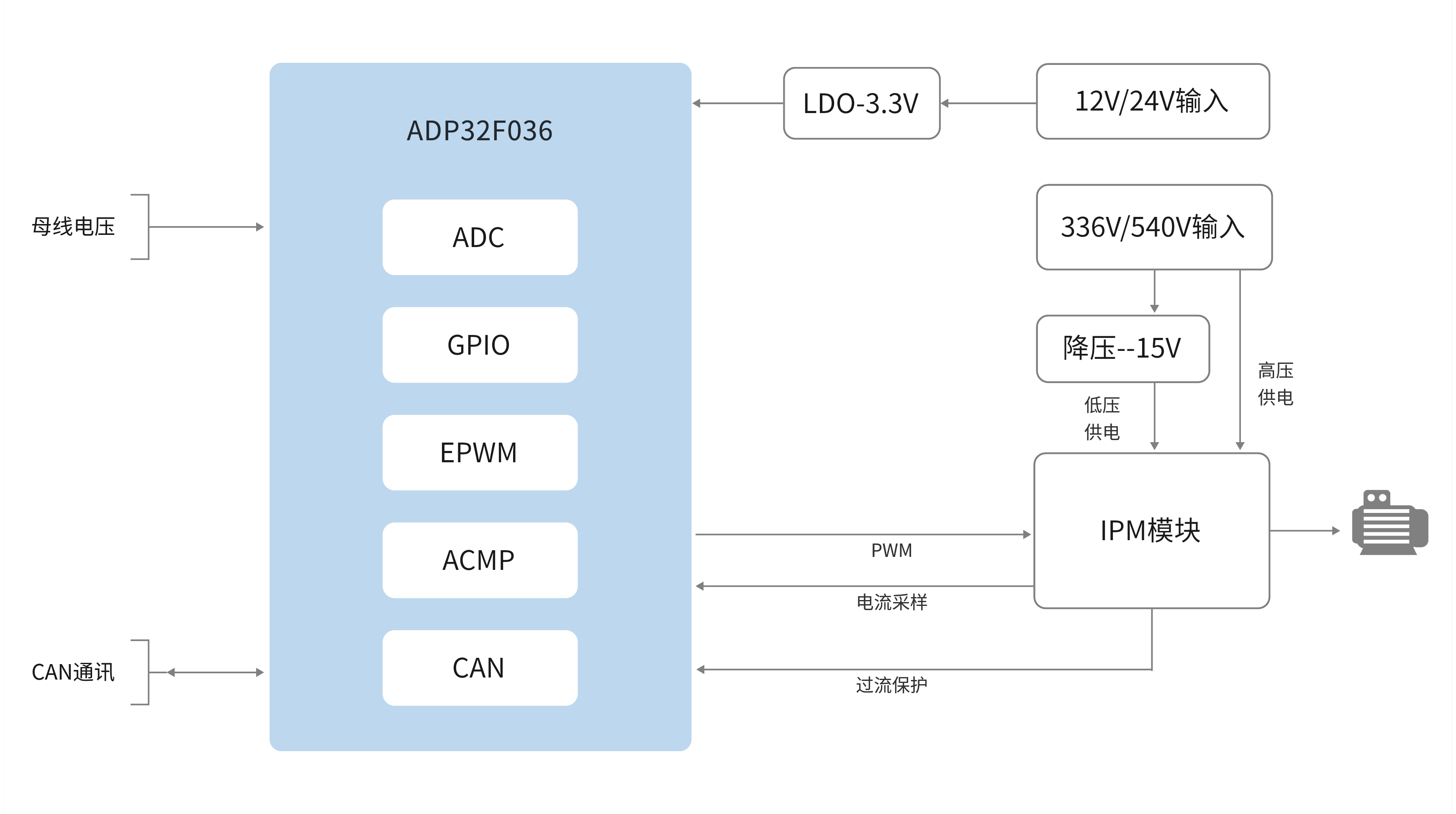

● Hardware composition: ADP32F036QP48Q+IPM
● Operating voltage: DC 360V/540V
● Power: 3000~4000W
● Motor: PMSM motor
● Control algorithm: dual resistor/single resistor non inductive FOC control
● Protection functions: overvoltage, undervoltage, overcurrent, phase loss, locked rotor protection, etc.
● Operating voltage: DC 360V/540V
● Power: 3000~4000W
● Motor: PMSM motor
● Control algorithm: dual resistor/single resistor non inductive FOC control
● Protection functions: overvoltage, undervoltage, overcurrent, phase loss, locked rotor protection, etc.
