Jinxin Electronics launched a high-performance BLDC/PMSM control chip - ADM16F01

Since the launch of our country's 13th Five-Year Plan, energy conservation and emission reduction, to achieve greener, more lasting and more sustainable benign development have become one of the key control tasks of enterprises. BLDC/PMSM motors adopt a new motor design, which can greatly improve the output efficiency and achieve a good energy-saving effect, so it has become the preferred choice of most enterprises. With the wider application range of BLDC/PMSM motors, the requirements for motor high efficiency and energy saving, noise, stability, miniaturization and high speed are also getting higher and higher. As the core component of motor control, the main control chip plays a crucial role, and the main control chip not only needs to have powerful motor control peripherals, but also needs to have strong real-time performance.

The ADM16F01 launched by Jinxin Electronics is a highly integrated high-performance BLDC/PMSM controller that uses a high-performance 16-bit CPU with a maximum operating frequency of 40MHZ.

In terms of storage, the ADM16F01 has embedded 32Kx16-bit Flash, 512x16-bit ROM, and two 256 x 16-bit DARAM, 32x16-bit DARAM and 2K x 16-bit SARAM.

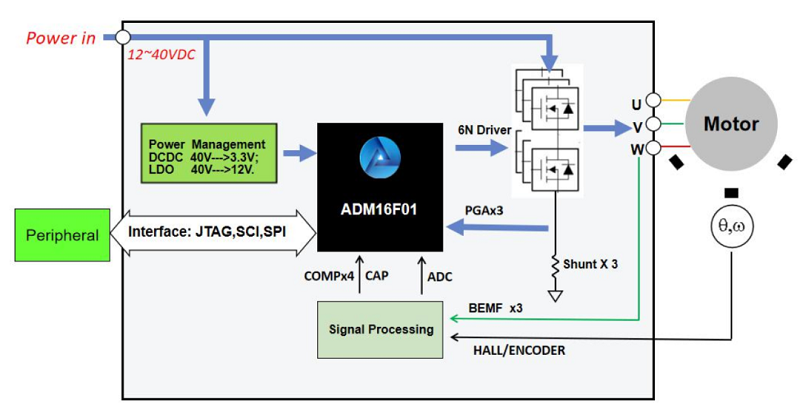

The ADM16F01 also integrates 6 NMOS Pre-Drivers, op-amps, PGAs, comparators, high-speed ADCs, SCIs, SPIs and other modules, in two packages, QFN-56 and LQFP-48, which are very suitable for BLDC/PMSM motor square wave, SVPWM/SPWM, FOC drive control.
