Jinxin Electronics launches intelligent small home appliance control chip solution
With the rapid progress of technology and the substantial improvement of living standards, the performance of home appliances has been upgraded, and it is increasingly convenient, intelligent, miniaturized and energy-saving. Colorful, good-looking, and high-performance small household appliances have also quietly blossomed. Household usage scenarios make small household appliances have high requirements for motor miniaturization, high efficiency, low noise, high control accuracy and long life, and are also very sensitive to the cost of motors. As a result, DC brushless motors have become the preferred solution for small household appliance applications.
Compared with previous small home appliances, smart small home appliances are more concerned about improving product energy efficiency and operation convenience to meet consumer needs, which also puts forward higher requirements for the algorithm and resources of its main control chip. As one of the cores of intelligent small household appliance motor control, DSP chip has the characteristics of high integration, low power consumption and strong real-time performance, and can process various external information inputs at the same time in small household appliances, and command each functional unit to operate intelligently and efficiently to achieve the effect of human-computer interaction. Jinxin Electronics provides a variety of main control chip application solutions for small household appliances, which can meet the diverse needs of customers.
As the main control chip of high-speed hair dryers, the high-performance 16-bit DSP ADP16F03 of Jinxin Electronics has a maximum frequency of up to 100MHz, built-in rich functional modules, and has calculation functions such as division, square square, anyway tangent, park transformation, 32-bit multiplication and shift, and has strong anti-interference ability. The chip also integrates rich peripheral resources such as 4 op amps, 3 comparators, and 3-way capture, which can more accurately and efficiently implement the sensorless FOC core algorithm and realize the smooth operation of the motor.
▲System control block diagram
Scheme features:
The overall BOM cost is low, and the speed can reach 110,000 rpm
Complete protection features:
1. Startup Protection 2. Overvoltage protection 3. Undervoltage protection
4. Overcurrent protection 5. Blocking protection 6. Phase loss protection
7. Power protection 8. Speed overshoot protection
9. Sampling anomaly protection
Fast start-up and downtime:
1. 500ms acceleration to maximum speed, smooth start without jitter
2. 300ms ultra-fast brake shutdown, shutdown is smooth and does not shake, and the brake bus recoil voltage is small
Excellent closed-loop control:
1. Speed closed-loop control 2. Current closed-loop control
3. Power closed-loop control
Stable motor control:
Even though the input front end is turbulent, the motor is still running steadily
Precise closed-loop stability control:
It can detect the temperature of the heating wire in real time, and the PID adjusts the temperature to achieve precise temperature control, which can achieve temperature adjustment of 100 times/second

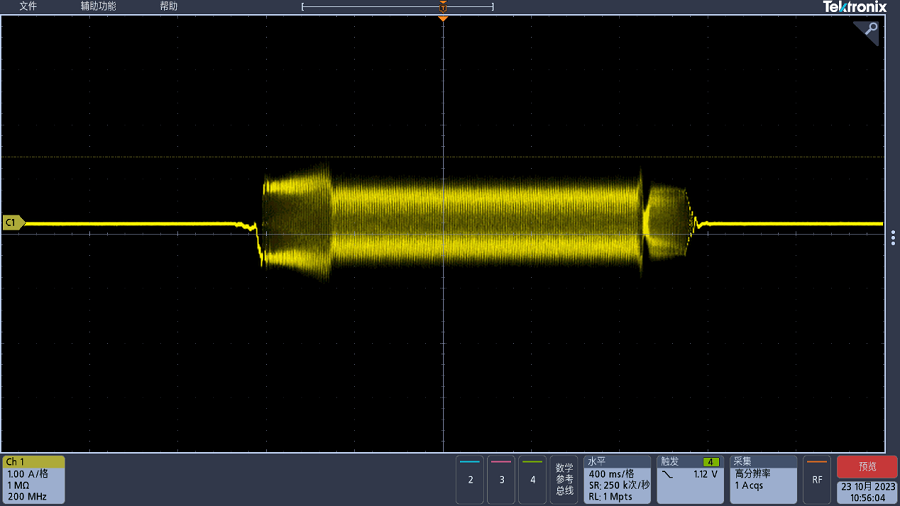

Stable current waveform:
Because of its strong advantage of multi-purpose, wall breakers have become a must-have kitchen appliance for families, and silent and deep wall breaking has become the demand of consumers. In response to this market demand, Jinxin Electronics launched a wall breaker solution based on ADP32F4408 high-performance DSP main control chip and self-developed non-inductive FOC software algorithm. This solution supports frequency conversion constant speed wall breaking, light fan heat dissipation, and achieves deep extraction and uniform release, making it a perfect companion for home cooking.

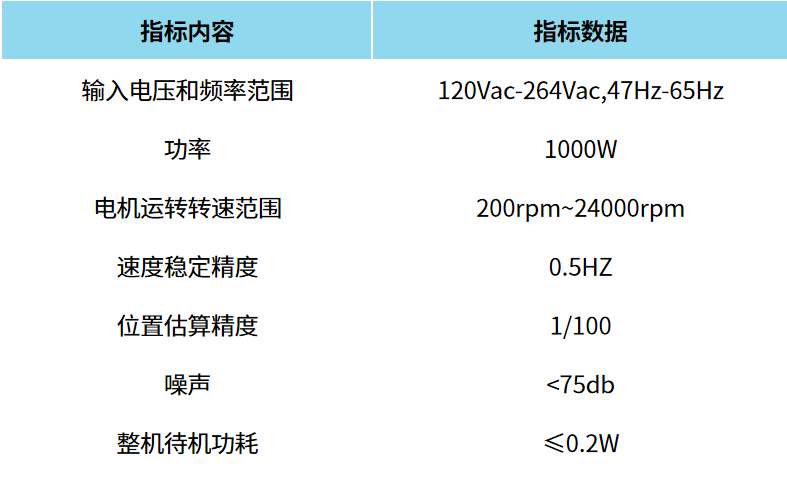

▲Technical indicators of the scheme
# Contact information
For all kinds of high-efficiency small household appliance motor control needs, Jinxin Electronics can provide customers with one-stop DSP main control chip solutions, if you want to know more about the solution details or product information, please contact 0731-88731027.
