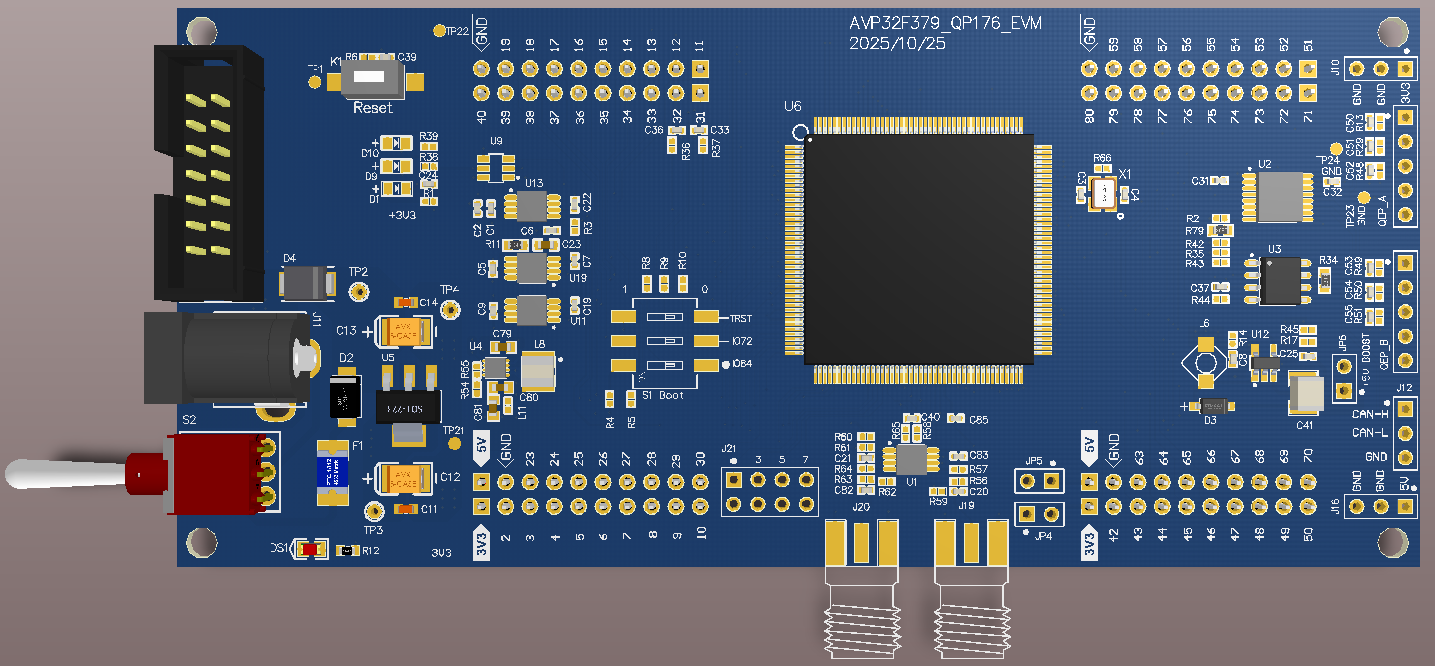

The AVP32F379QP176 development board is an evaluation and prototype development platform based on the AVP32F379QP176 high-performance real-time control chip, equipped with high-capacity on-chip storage and high-precision control peripherals; On board differential ADC sampling front-end, CAN bus interface, and orthogonal encoder interface, with full IO pin output and support for multiple BOOT boot modes, can quickly complete scheme verification and product development in high-performance servo drive, industrial automation, high-precision signal acquisition and other scenarios.

Processor

● Main processor chip: AVP32F379QP176

● Dual core 32-bit floating-point CPU, clock speed 200MHz

● Integrated 2-channel programmable control law accelerator (CLA), supports floating-point instructions, can run independently of the main CPU in parallel

● On chip 1MB Flash (ECC hardware protection), 204KB RAM (ECC/parity protection)

● 4-channel 12 bit high-precision ADC, supports 16 bit differential input mode; Built in 8-channel window comparator with 12 bit DAC, 3-channel 12 bit buffer DAC

, 24 channel PWM output (including 16 high-resolution HRPWM channels), 6-channel eCAP capture module, 2-channel EQEP orthogonal encoder interface

human-machine interaction

, 3-channel user LED indicator light

, 1-channel reset button

, 3-bit BOOT mode dip switch

Peripheral interface

● 2-channel high-precision differential ADC input interface

● 4-channel SCI interface

● 2-channel I2C interface

● 3-channel SPI interface

● 2-channel EQEP orthogonal encoder interface

● 2-channel CAN interface

● 1-channel CANFD interface

Debugging

● All functional IO Lead out

through pin placement ● JTAG emulator interface

● Supports multiple BOOT boot mode configurations
