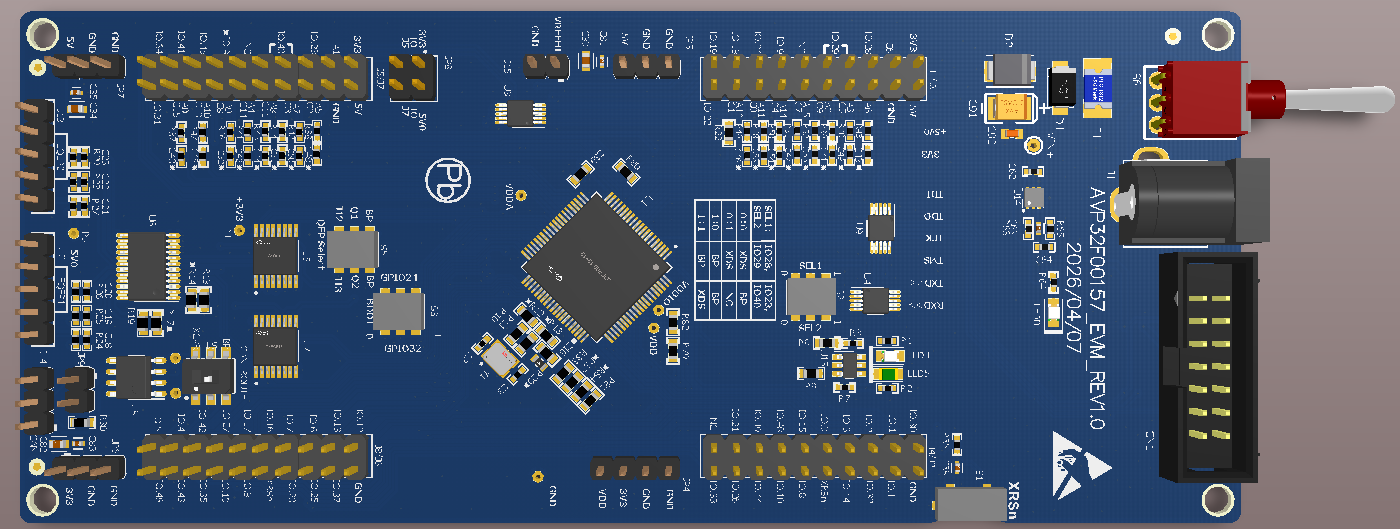

The AVP32F00157QP80 development board is a learning and secondary development platform based on the AVP32F00157QP80 chip. It can be directly embedded into users' product development process as a functional board, greatly reducing the development cycle. Onboard 2-channel orthogonal encoder interface, equipped with industrial communication peripherals such as CAN, LIN, I2C, etc., paired with on-chip high-speed ADC and high-resolution PWM, with full IO pin output and support for multiple BOOT boot modes, can meet the development needs of high reliability industrial drivers, automotive electronics, and other multiple scenarios.

Processor

● Main processor chip: AVP32F00157QP80

● Dual core lockstep 32-bit floating-point core, main frequency 120MHz

● on-chip 256KB Flash, 36KB SRAM

● 2-channel 12 bit high-precision ADC, 14 PWM outputs (including 4 HRPWM high-resolution channels)

● Built in 1 CMPSS analog comparator, 3 CMPSSLITE, 3 eCAP capture modules, 2 EQEP orthogonal encoder interfaces

Human computer interaction

● 3 LED indicator lights

● 3 sets of functional dip switches

● 1 reset button

External memory

● 2KbEEPROM

External interface

● 1 CAN interface

● 1 channel CANFD interface

● 3-channel SCI interface

● 1-channel LIN interface

● 2-channel I2C interface

● 1-channel SPI interface

● 2-channel EQEP orthogonal encoder interface

Debugging

● All functions IO pin out

● JTAG emulator interface

● BOOT mode configuration, supporting multiple program boot modes
