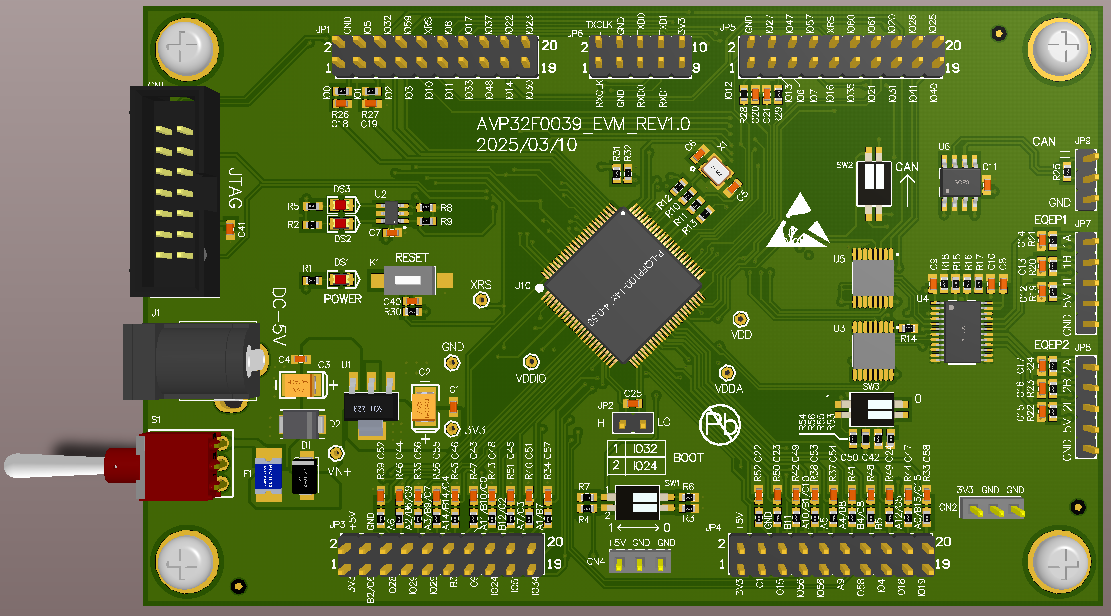

The AVP32F0039 development board is a learning and secondary development platform based on the AVP32F0039 chip, which can be directly embedded into the user's product development process as a functional board, greatly reducing the development cycle. The chip adopts A200032 bit floating-point architecture, with a main frequency of 120MHz. It integrates programmable control accelerator and rich control peripherals, analog resources, and is suitable for various scenarios such as motor drive, industrial control, sensor acquisition, etc; Onboard standard debugging interface, full IO port pin out, supports multiple BOOT boot modes, facilitating users to quickly carry out scheme verification and secondary development.

Processor

● Main processor chip AVP32F0039QP100S

● 32-bit floating-point DSP core, clock speed 120MHz

● On chip 384KB Flash (3 independent memory banks, ECC hardware verification), 69KB SRAM (ECC/parity)

● 3-channel 12 bit high-precision ADC, 16 channel PWM output (including 8 high-resolution HRPWM channels)

● 4-channel CMPSS analog comparator, 2-channel buffer DAC, 8-channel SDFM filter, 2-channel EQEP orthogonal encoder interface

human-machine interaction

● 3-channel LED lights

● 3-channel function dip switch

● 1-channel reset Button

External memory

● 2KbEEPROM

External interface

● 1-channel CAN interface

● 1-channel CANFD interface

● 2-channel SCI interface

● 2-channel LIN interface

● 2-channel I2C interface

● 2-channel SPI interface

● 2-channel EQEP Orthogonal encoder interface

● FSI high-speed serial communication interface

Debugging

● All functions IO pin lead out

● JTAG emulator interface

● BOOT mode dip switch, supporting Flash/SCI/CAN/parallel GPIO multiple boot modes
