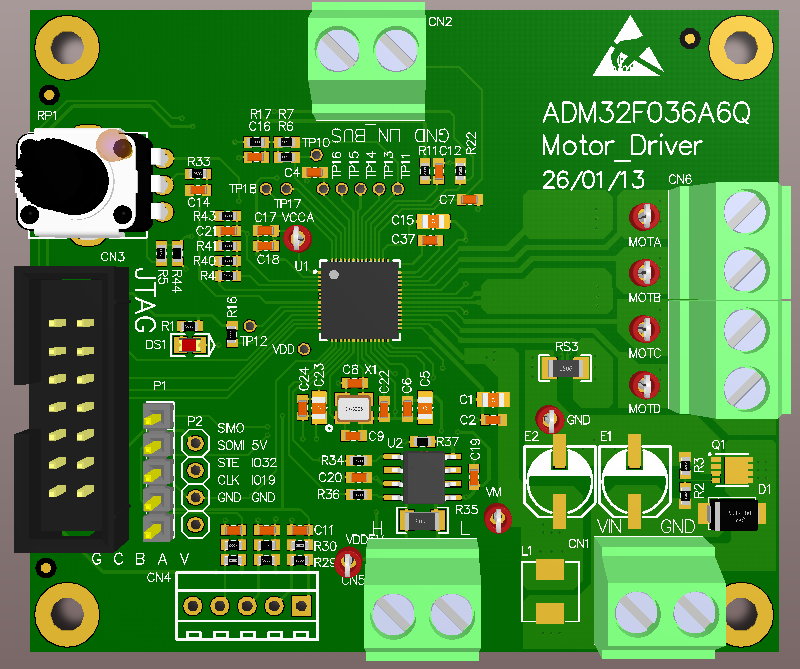

The ADM32F036A6Q low-voltage motor evaluation board is a motor development platform based on the ADM32F036A6Q chip, which can meet the needs of users for sensing/non sensing FOC (single resistor sampling) and sensing/non sensing square wave debugging. At the same time, the LIN transceiver integrated into the chip allows users to easily and cost effectively implement LIN communication functions; Onboard CANFD transceiver can also achieve CANFD communication function; Support offline burning and adapt to multi scenario burning requirements.

● Main architecture 32-bit fixed-point DSP

● Main frequency 100MHz

● Storage resources 18Kx16 bit SARAM, 64Kx16 bit Flash

● Communication interfaces CAN, SPI, LIN, I2C

● Analog peripheral 1OP+3PGA+3 comparator (internal DAC voltage reference, output associated TZ)+temperature sensor

● Integrated configuration 5V-LDO, 12V-LDO, 8NMOS pre drive, LIN transceiver, charge pump, four-way independent half bridge

● Power input 12-24V

tag10}

● Main control chip ADM32F036A6Q

● Communication interfaces LIN communication, SPI communication, SCI communication, CAN communication, I2C communication

● Driver mode supports inductive/non inductive FOC (single resistor sampling), inductive/non inductive square wave

● Burning mode supports offline burning, JTAG online simulation burning
