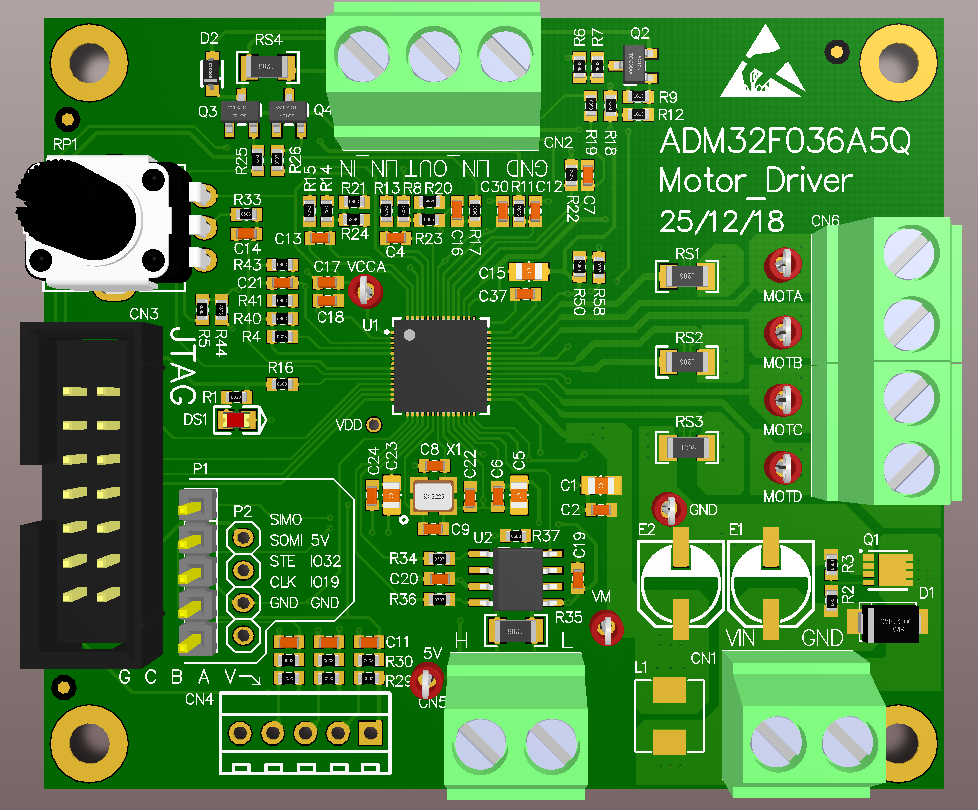

The ADM32F036A4Q motor drive DEMO board is a motor development platform based on the ADM32F036A4Q chip, integrating LDO, 8NMOS pre drive, and dual H-bridge. It is equipped with a 100M main frequency 32-bit DSP processing core+CLA, enhanced control peripherals, CAN, CANFD, LIN (with transceiver), SPI, HRCAP modules, 12 bit ADC, voltage comparator, and temperature sensor; Onboard CANFD transceiver can also achieve CANFD communication function. It can form a highly integrated motor control drive core to complete motor control, supporting multiple modes such as inductive, non inductive, square wave, and sine wave.

● Main architecture 32-bit fixed-point DSP
● Main frequency 100MHz
● Storage resources 18K x 16 bit SARAM 64K x 16 bit Flash
● Communication interfaces CAN (CANFD), SPI, SCI, LIN
● Analog peripheral 1OP+2PGA+3 comparator (internal DAC voltage reference, output associated TZ)+temperature sensor
● Integrated configuration 5V-LDO, 12V-LDO, 8NMOS pre drive and dual H-bridge LIN transceiver
● power input 12-24V
● main control chip ADM32F036A4Q
● communication interface LIN communication, SPI communication, SCI communication, CAN communication
● /Non inductive FOC (single resistor), with/without inductive square wave, step
